  • 24/7 online vibration and temperature monitoring device
  • Automatic devicethe registratrion on teh cloud via cellular interface
  • Proactive alerts from the Predict-Cloud
  • Long Term storage of trend data including Fast Fourier Transform (FFT)
  • Affordable and available as a standard option on all PumpWorks Industrial products
  • External or battery powered

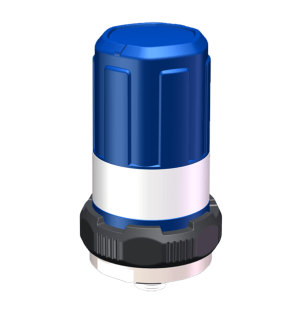

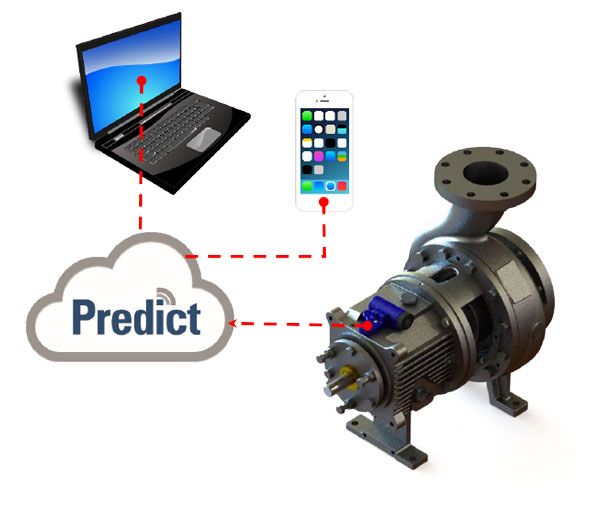

Predict-Plus is the Only Wireless and Cloud Connected Machinery Health Monitor Designed Specifically for Proactive Pump

Always On

Predict-Plus is CONTINUOUSLY monitoring and logging your pump health.

Vibration

Self-Calibrating Tri-Axial Accelerometer and overall FFT and time waveforms.

Bearing Temperature

Integrated thrust bearing temperature monitoring.

Alerts

Store and analyze unlimited data on each Predict-Plus enabled device. Securely access anywhere, anytime via internet connected device.

Measurements

  • Footprint: 4.2” x 4.0” x 1.7”
  • Battery Voltage(3 AA): 4.5VDC
  • Wired Voltage: 9-24VDC/30mA
  • Mounting Screw: ¼-20 x 0.75” Button Head

Operation Modes

  • Battery (Low Power): 3 AA; Up to 4 samples per hour and 2 cloud upload times per day
  • Battery Life: 1 year in temperatures -40°F to +140°F
  • Batteries must be changedin an area free of ignitable concentrations
  • External DC Power: 9-24VDC/30 mA; Up to 20 samples per hour and 8 cloud upload times per day

EDGE Computing

  • Tri-axial vibration monitoringIPS
  • Temperature monitoring ±5°F
  • Real-time RPM calculation
  • Real-Time Axial, Vertical, and Horizontal RMS
  • Real-Time Axial, Vertical, and Horizontal FFT
  • Operational timemonitoring

User Interface

  • Internet Browser; Microsoft Edge, Google Chrome, Mozilla Firefox, Apple Safari
  • Mobile App: Predict-Cloud on iOS and Android

Notifications

  • RMS threshold cross alert
  • FFT frequency threshold cross alert
  • Operational time threshold cross alert
  • Temperature threshold cross alert
  • Low battery alert

Standards

  • Class I, Division II
  • IP66/NEMA 4X enclosure
  • RoHS Compliant
  • FCC Part 27 QIPELS31-V or QIPELS61-US
  • FCC Part 15Environmental Conditions
  • Operating Temperature: -22°F to +158°F
  • Relative Humidity: 90%
  • Water & Dust Spray Resistant (IP66)

Communication

  • Automatically seeks optimal connection to Predict-Cloud servers over AT&T or T-Mobile 4G LTE or 3G based on signal strength
